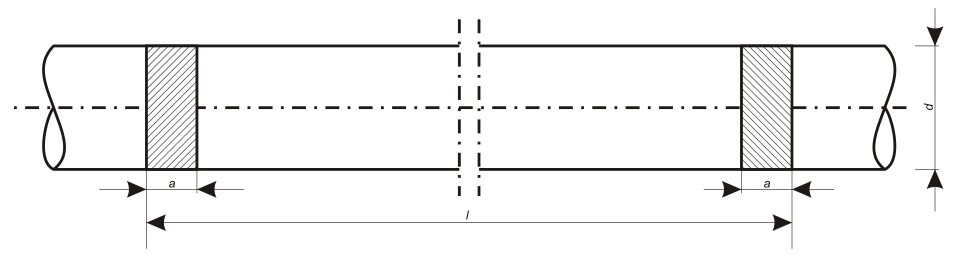

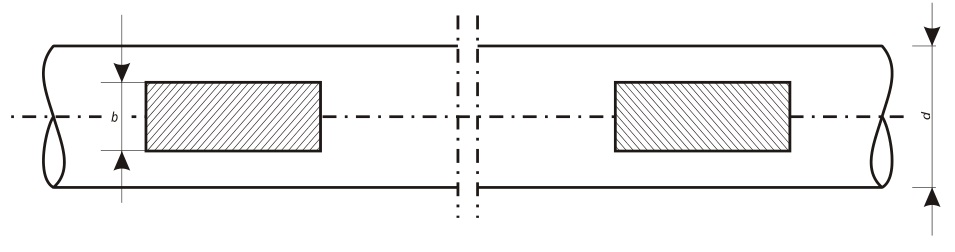

Recommended Size
| Pipeline diameter (d) | Tape width (a) | Label height (b) | Spaces between tapes (lmax) |
|---|---|---|---|
| below 80 | 40 | 20 | 2000 |
| from 80 to 160 | 80 | 40 | 3000 |
| from 160 to 315 (300) | 100 | 80 | 4000 |
| above 315 (300) | 160 | 120 | 6000 |
Tapes Table
Coloured
Tapes
| Colour | 40mm | 80mm | 100mm | 160mm |
|---|---|---|---|---|
| White | CTO40-010 | CTO80-010 | CT100-010 | CT160-010 |
| Yellow | CTO40-021 | CTO80-021 | CT100-021 | CT160-021 |
| Red | CTO40-031 | CTO80-031 | CT100-031 | CT160-031 |
| Orange | CTO40-035 | CT080-035 | CT100-035 | CT160-035 |
| Violet | CTO40-040 | CT080-040 | CT100-040 | CT160-040 |
| Green | CTO40-062 | CT080-062 | CT100-062 | CT160-062 |
| Blue | CTO40-052 | CTO80-052 | CT100-052 | CT160-052 |
| Black | CTO40-070 | CTO80-070 | CT100-070 | CT160-070 |
| Silver gray | CTO40-090 | CT080-090 | CT100-090 | CT160-090 |
| Brown | CTO40-801 | CTO80-801 | CT100-801 | CT160-801 |
Multicoloured
Tapes
| Colour | Colour Code | Instruction | ||
|---|---|---|---|---|
| White | 010 | 1. Pick roll width (040; 080 or 160) 2. Pick colour code 3. Product id: IMO [roll width]-[colour code1]/[code2]/[code3] Example: IMO 080-062/021/062 |
||
| Yellow | 021 | |||
| Red | 031 | |||
| Orange | 035 | |||
| Violet | 040 | |||
| Green | 062 | |||
| Blue | 052 | |||
| Black | 70 | |||
| Silver gray | 090 | |||
| Brown | 801 | |||
Coloured Tapes
with arrows
| Colour | ||||
|---|---|---|---|---|
| 40mm | 80mm | 100mm | 160mm | |
| White | AT040-010 | AT080-010 | AT100-010 | AT160-010 |
| Yellow | AT040-021 | AT080-021 | AT100-021 | AT160-021 |
| Red | AT040-031 | AT080-031 | AT100-031 | AT160-031 |
| Orange | AT040-035 | AT080-035 | AT100-035 | AT160-035 |
| Violet | AT040-040 | AT080-040 | AT100-040 | AT160-040 |
| Green | AT040-062 | AT080-062 | AT100-062 | AT160-062 |
| Blue | AT040-052 | AT080-052 | AT100-052 | AT160-052 |
| Black | AT040-070 | AT080-070 | AT100-070 | AT160-070 |
| Silver gray | AT040-090 | AT080-090 | AT100-090 | AT160-090 |
| Brown | AT040-801 | AT080-801 | AT100-801 | AT160-801 |
Coloured Tapes
with arrows and text
| Colour | ||||
|---|---|---|---|---|
| 40mm | 80mm | 100mm | 160mm | |
| White | TT040-010 | TT080-010 | TT100-010 | TT160-010 |
| Yellow | TT040-021 | TT080-021 | TT100-021 | TT160-021 |
| Red | TT040-031 | TT080-031 | TT100-031 | TT160-031 |
| Orange | TT040-035 | TT080-035 | TT100-035 | TT160-035 |
| Violet | TT040-040 | TT080-040 | TT100-040 | TT160-040 |
| Green | TT040-062 | TT080-062 | TT100-062 | TT160-062 |
| Blue | TT040-052 | TT080-052 | TT100-052 | TT160-052 |
| Black | TT040-070 | TT080-070 | TT100-070 | TT160-070 |
| Silver gray | TT040-090 | TT080-090 | TT100-090 | TT160-090 |
| Brown | TT040-801 | TT080-801 | TT100-801 | TT160-801 |
Colourless Tapes
with arrows
| Colour | ||||
|---|---|---|---|---|
| 40mm | 80mm | 100mm | 160mm | |
| Transparent | AT040-010 | AT080-010 | AT100-010 | AT160-010 |

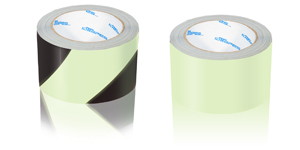

Photoluminescent
Tapes
| Colour | ||
|---|---|---|
| 50mm | 100mm | |
| Photoluminescent | WTPO50 | WTPO100 |
| Photoluminescent / red | WTPO50-031 | WTPO100-031 |
| Photoluminescent / black | WTPO50-070 | WTPO50-070 |
| Photoluminescent / green | WTPO50-062 | WTPO100-062 |
Multifunction
Tapes
| Colour | ||||
|---|---|---|---|---|
| Colour Code | Instruction | |||
| White | 010 | 1. Pick roll width (080; 100 or 160) 2. Pick colour code 3. Pick GHS picktogram (GH01; GH02; GH03; GH04; GH05; GH06; GH07; GH08; GH09) 3. Product id: MT [roll width]-[colour code1]/[any text]/[pictogram] Example: MT 100-021/TEXT/GH02 |
||
| Yellow | 021 | |||
| Red | 031 | |||
| Violet | 035 | |||
| Green | 040 | |||
| Blue | 062 | |||
| Black | 052 | |||
| Black | 070 | |||
| Silver gray | 090 | |||
| Brown | 801 | |||
Tapes
with pictograms
| Colour | |||
|---|---|---|---|
| Instruction | |||
| White | 1. Pick roll width (40; 80; 100 or 160) 2. Pick GHS picktogram (GH01; GH02; GH03; GH04; GH05; GH06; GH07; GH08; GH09) 3. Product id: ST [roll width]/[pictogram code1]/[pictogram code2] Example: ST 40/GH02 *on 40mm only one pictogram allowed |
||
Warning
Tapes
| Colour | ||||
|---|---|---|---|---|
| 40mm | 80mm | 100mm | 160mm | |
| Yellow-Black | W040-010 | W080-010 | W100-010 | W160-010 |
| White-Red | W040-021 | W080-021 | W100-021 | W160-021 |
Reflective
Tapes
| Colour | ||
|---|---|---|
| 50mm | 100mm | |
| Yellow-Black | WTR050-021 | WTR100-021 |
| White-Red | WTR050-031 | WTR100-031 |
